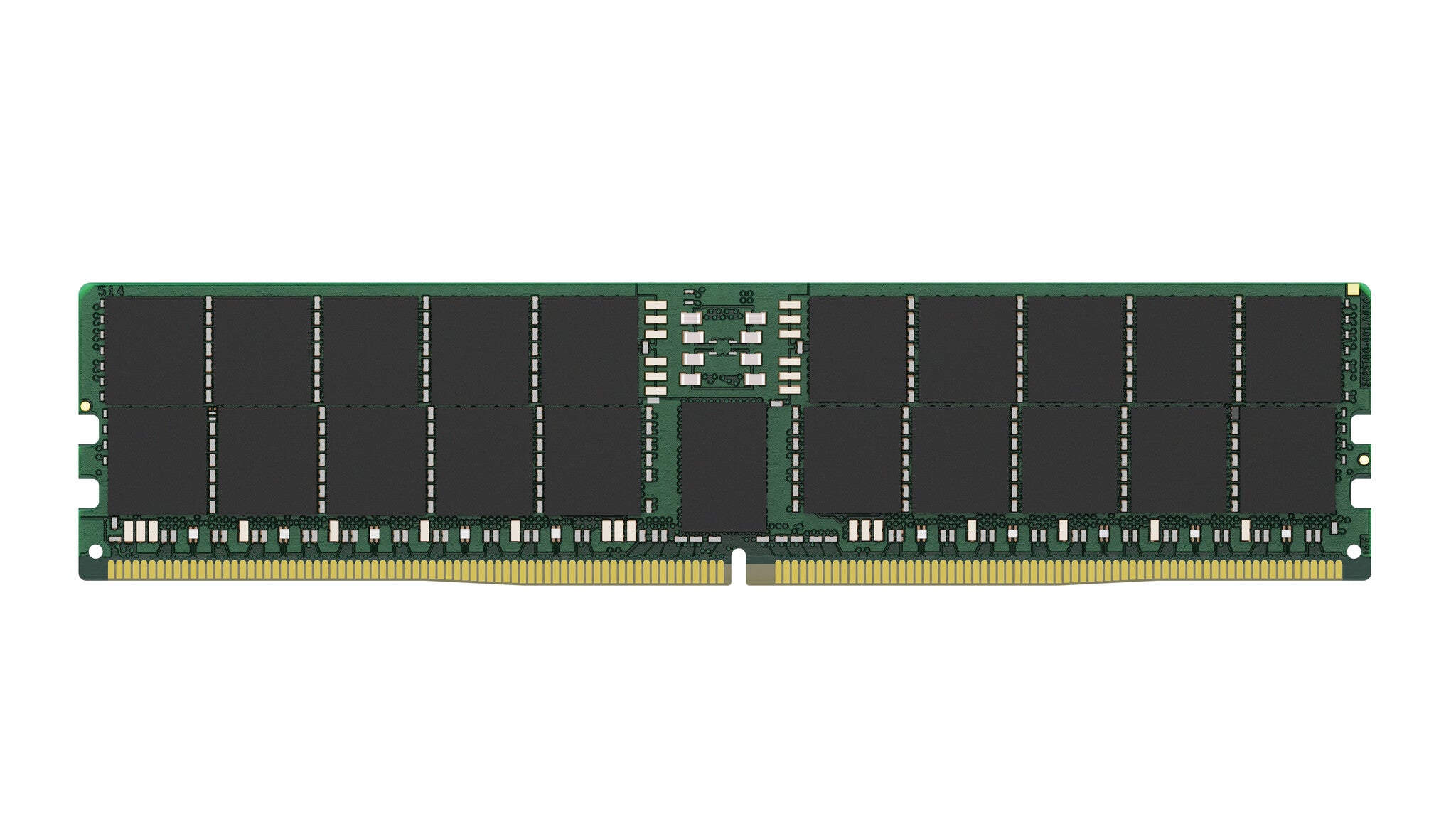

Kingston Technology KSM48R40BD4-64HA memory module 64 GB 1 x 64 GB DDR5 4800 MT/s

PC/Server 64 GB DDR5 4800 MT/s. 288-pin DIMM 1 x 64 GB. CAS latency: 40. 1.1 V. Kingston memory is designed, manufactured and rigorously tested to meet the exact specifications of each brand name system.. Features. JEDEC standard. Yes. Lead plating. Gold. SPD profile. Yes. Programming power voltage (VPP). 1.8 V. Row active time. 32 ns. Refresh row cycle time. 295 ns. Row cycle time. 48 ns. Module configuration. 8192M x 80. Memory voltage. 1.1 V. Memory ranking. 2. Memory data transfer rate. 4800 MT/s. CAS latency. 40. On-Die ECC. Yes. ECC. No. Memory form factor. 288-pin DIMM. Component for. PC/Server. Internal memory type. DDR5. Memory layout (modules x size). 1 x 64 GB. Internal memory. 64 GB. Buffered memory type. Registered (buffered). Operational conditions. Storage temperature (T-T). -55 – 100 °C. Operating temperature (T-T). 0 – 95 °C. Sustainability. Doesn’t contain. Halogen. Technical details. Compliance certificates. RoHS. Weight & dimensions. Height. 31.2 mm. Width. 133.3 mm. leaflet
