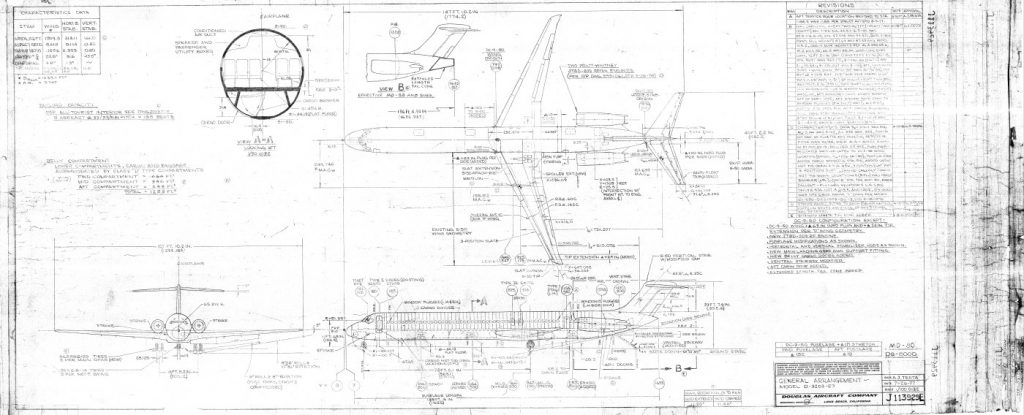

A general arrangement diagram of the Douglas Model D-3203-29. This was a modified DC-9-50, appears to be the basic design for the MD-80, dated 7-26-1977.
The full-rez scan (more than ten times larger than this one) has been made available as a bonus to above-$10 subscribers and Patrons. If interested in such things, consider subscribing:
https://www.aerospaceprojectsreview.com/monthly.htm
